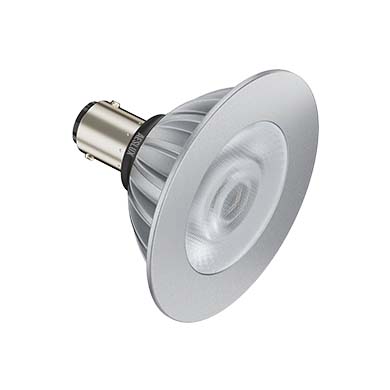

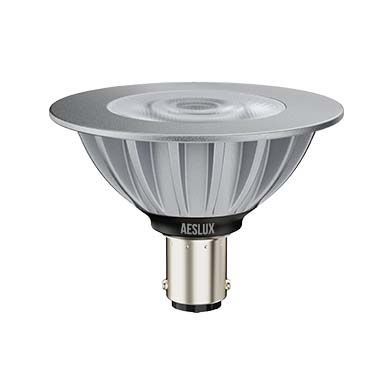

8119-AR70-PG BA15d 6.5W DIM

· LED AR70 PG BA15d CRI97 Spotlight.
· Perfect grade light quality.
· Excellent dimming function with most trailing edge dimmers.
· Brilliant reliability.
· Very good heat dissipation.
· Ambient temperature from -20°C to +40°C.
· Suitable for open/enclosed fixtures with at least 10mm space all around for free air flow.
· Flicker free for human eyes.
· 5 years warranty.
Product 8119-AR70-PG 6.5W DIM
Nominal Watage 6.5W
Nominal voltage12 VAC
Voltage range10-14V
Operating frequency50...60 Hz
Input current 600mA
CCT 2700K / 3000K / 3500K / 4000K
Lumen 530Lm / 540Lm / 560lm / 580lm
CRI 97
Beam angle 12° / 15° / 25° / 36° / 60°
Dimmable Yes
Dimming technologyTrailing edge dimming
Percent flicker < 5%
Power factor 0.9
L70B50 Lifetime 50,000 hrs
Tc Max75°C
Dimension70*50mm
CertificationsCE, RoHS, UKCA
Warranty5 Years
