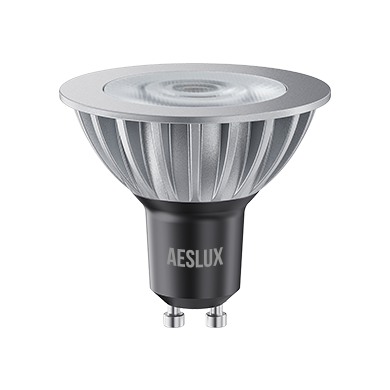

8120-ES63-PG 6.5W DIM

· LED ES63 PG GU10 CIR97 Spotlight.
· Perfect grade light quality.
· Excellent dimming function.
· Brilliant reliability.
· Very good heat dissipation.
· Ambient temperature from -20°C to +40°C.
· Suitable for open/enclosed fixtures with at least 10mm space all around for free air flow.
· Flicker free for human eyes.
· 5 years warranty.
Product 8120-ES63-PG 6.5W DIM
Watage 6.5W
Rated voltage220~240VAC
Operating frequency50...60 Hz
Input current 38mA
CCT 2700K / 3000K / 3500K / 4000K
Lumen 530Lm / 540Lm / 560lm / 580lm
CRI 97
Beam angle 12° / 15° / 25° / 36° / 60°
Dimmable Yes
Dimming technologyLeading edge & trailing edge dimming
Percent flicker < 2%
Power factor 0.8
L70B50 Lifetime 50,000 hrs
Tc Max80°C
Dimension63*57mm
CertificationsCE, RoHS, UKCA
Warranty5 Years
