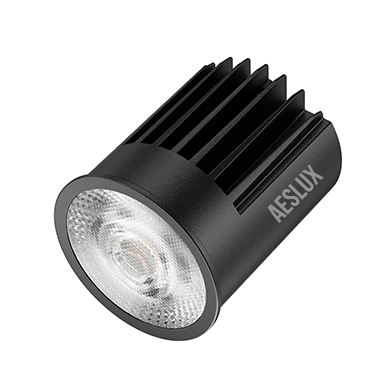

8121-LE50G2-LV-PG 12W

· LE50 LV PG LED Module CRI97 12W
· Low glare lens
· Perfect grade light quality
· Max input current 350mA (Tc < 90°C)
· Ambient temperature from -20°C to +40°C
· Suitable for isolated driver only
· L90B50 lifetime up to 50K hrs @ Tp: 75°C
· Ideal replacement of 20W metal halide lamp
· 5 years warranty
Product 8121-LE50G2-LV-PG 12W
Input voltage 35VDC
Rated current 350mA
CCT 2700K / 3000K / 3500K / 4000K
CRI 97
Lumen1250Lm / 1290Lm / 1350Lm / 1400Lm
Beam angle 15° / 25° / 36°
Integrated driver No
Classification SELV
Replaceable lens No
L90B50 lifetime50,000 hrs
Tc Max 85°C
Dimension50*58mm
Safety standardCE ROHS
Warranty5 Years
