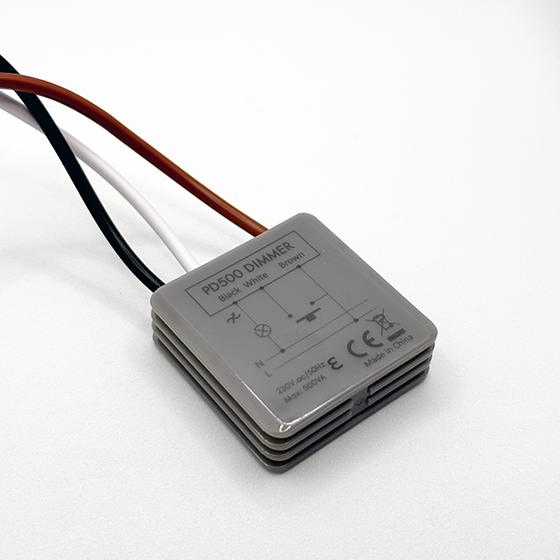

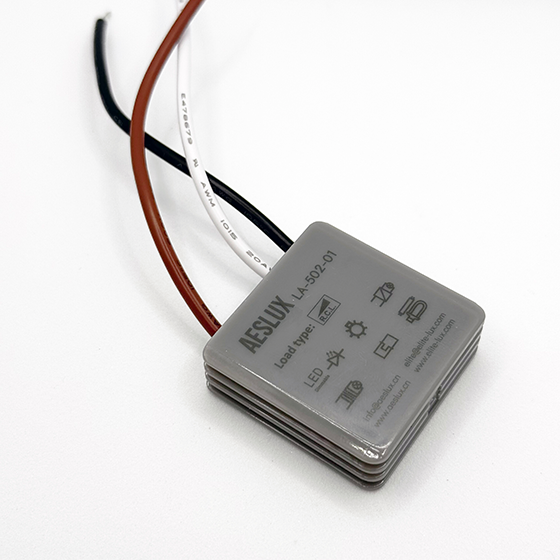

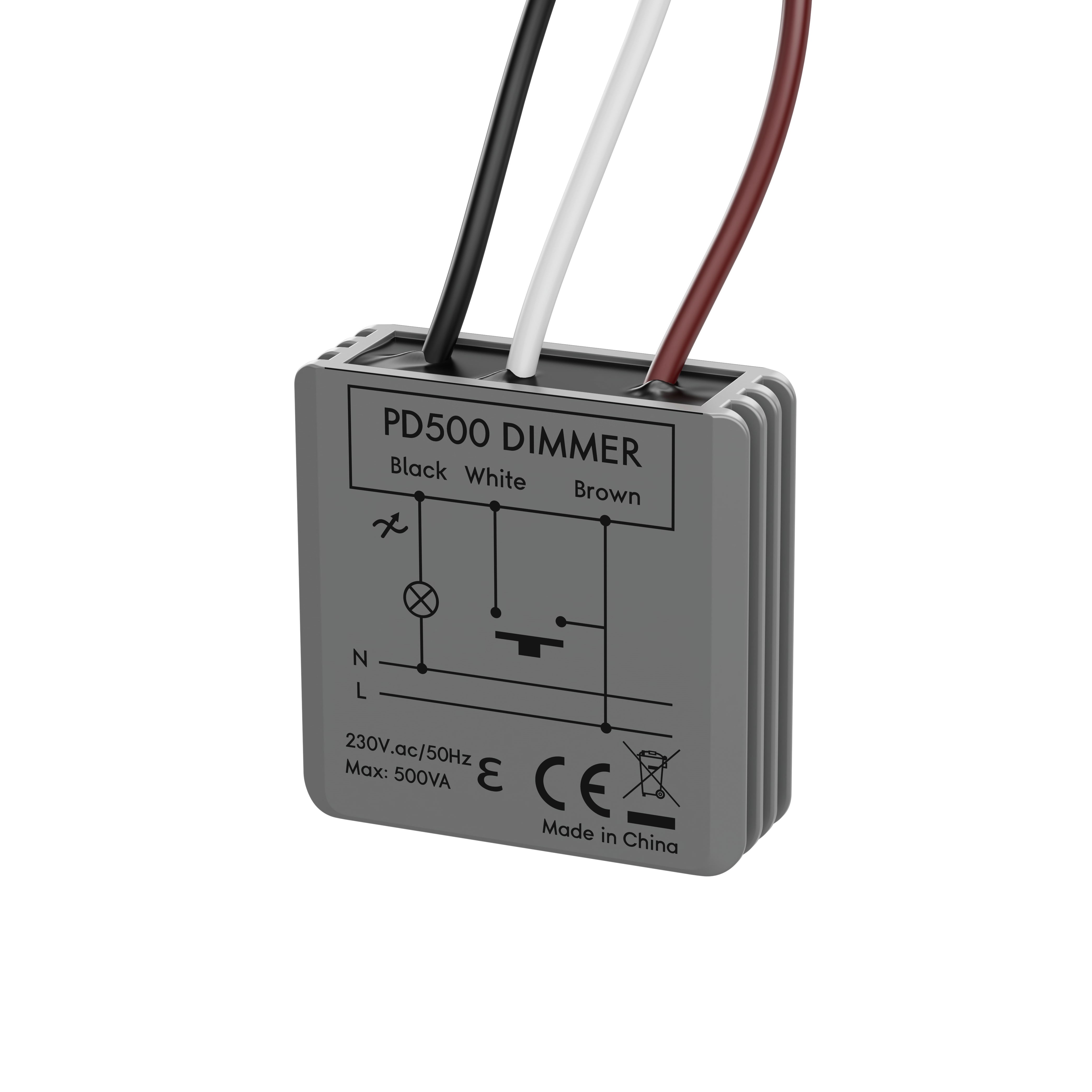

LA-502-01 PD500 Dimmer

· LED PD500 Push Bottom Dimmer
· No neautral wire
· Very compact size
· Over temperature protection
· Over load protection
· Not suitable for inductive loads
· Installation must be made by professionals
· Indoor use only
· 3 years warranty
Operating voltage220~240VAC
Frequency50 / 60 Hz
Temperature-20°C ~ + 40°C
Relative humidity0 to 90% RH
Dimmable LED5 - 250 VA
ELV10 - 500 VA
Incandescent10 - 500W
IP ratingIP 20
